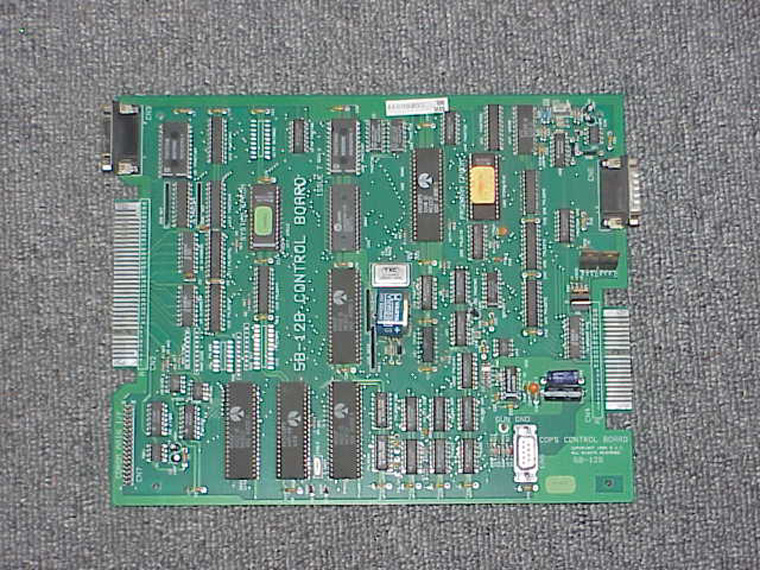

Main PCB
(11" x 8-3/4")

Sound PCB
(7-5/8" x 7-1/2")

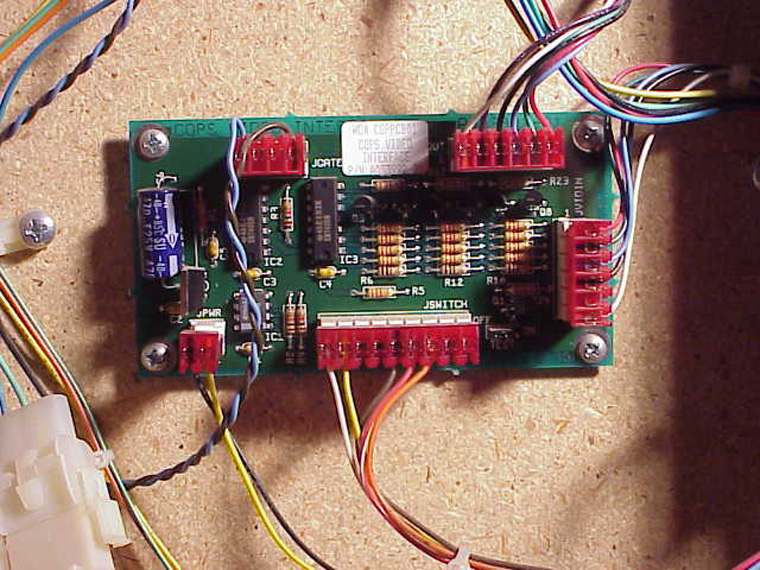

Video Interface
(4-3/4" x 2-1/2")

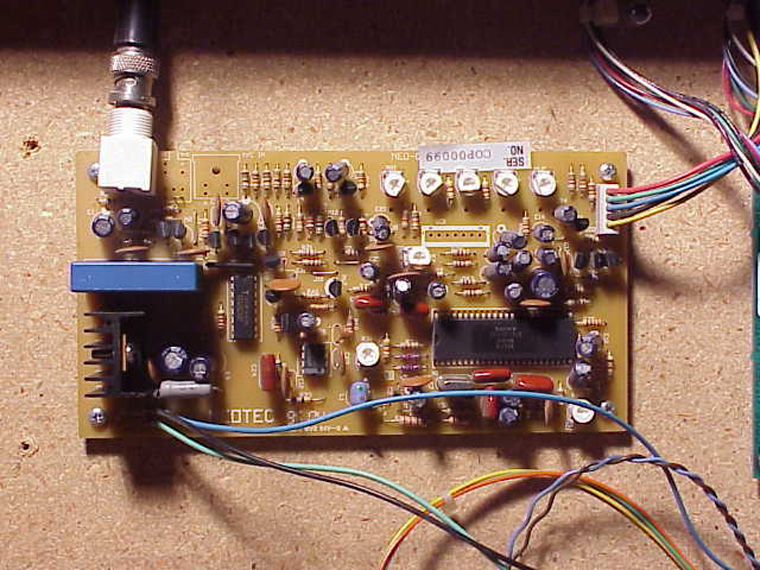

NTSC Decoder
(7" x 3-1/2")

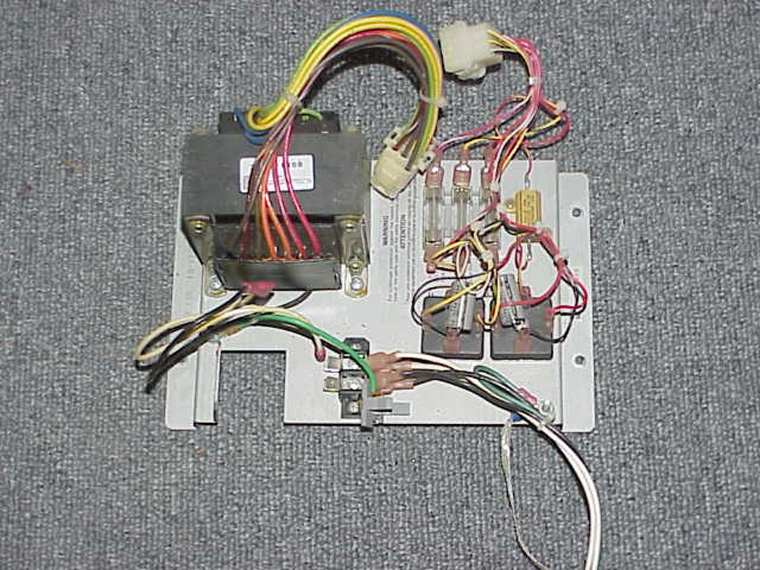

Power Supply

PS PCB
(7-1/4" x 4-3/4")

Complete
Boardset
Monitor
(33" Hantarex)

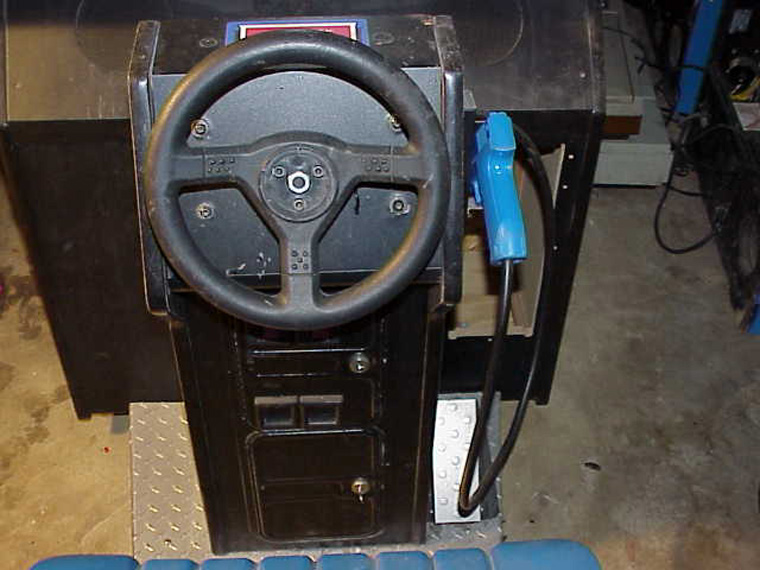

Control Panel

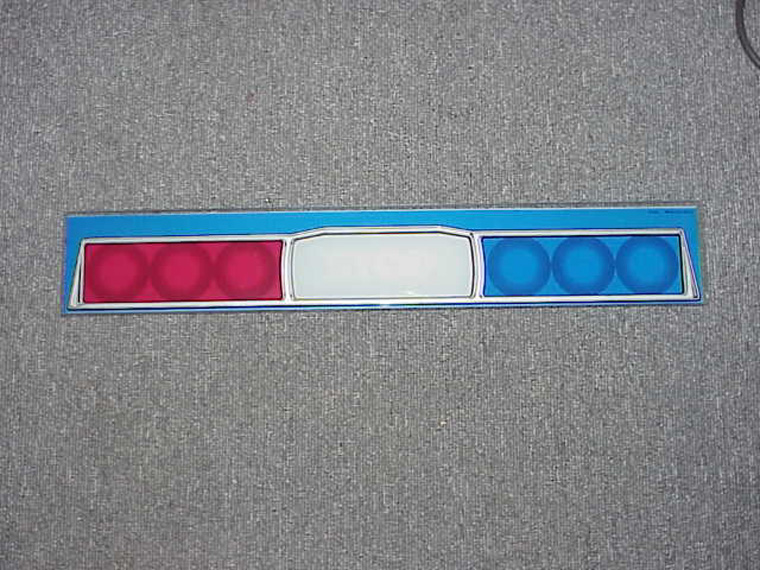

Marquee

Side Decals

Monitor Bezel

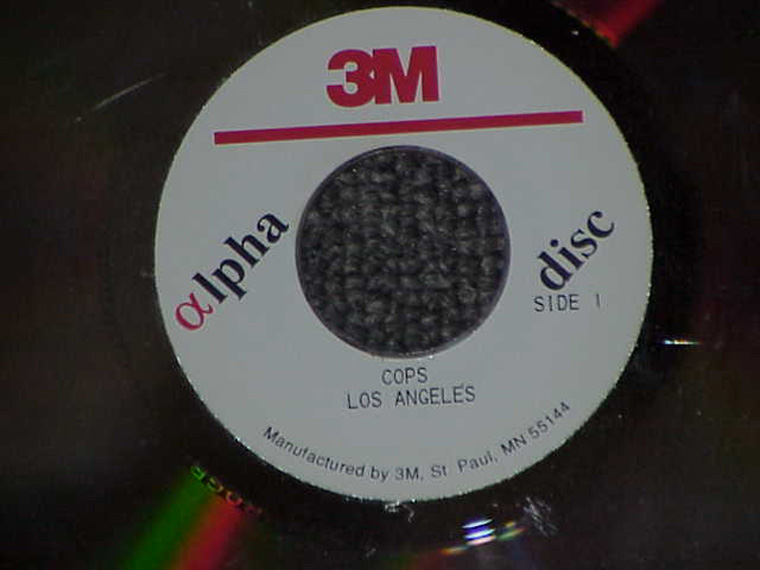

Laserdisc
(double-sided)

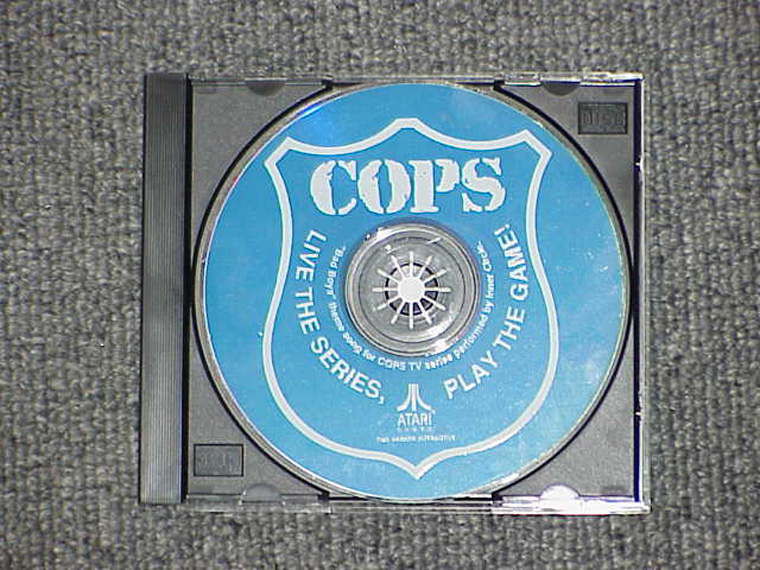

CD-ROM
("Bad Boys" track)

Sony LDP-1450
(17" x 16" 16.5 lbs)
Sony CD-ROM
(Model CDU33A-01)




Manufacturers:
Atari (USA, 1994)
Deith Leisure (Europe, 1994)
