EUROPEAN DRAGON'S LAIR/SPACE ACE SOFTWARE CORNER ROM HACK - 28 November 2007 | 7 February 2010
Developed by
Jeff Kulczycki, written by
Matteo Marioni, with contributions by
Shaun Wood
INTRODUCTION
The aim of this ROM hack is to allow the use of Software Corner Dragon's Lair and Space Ace laserdiscs
in European machines. As you probably know, these machines used laserdisc players and
discs in PAL video format, all manufactured by Philips. Well, apart from the laserdisc
players being VERY unreliable, the laserdiscs nowadays are all almost gone for
good due to the laser rot issue. So, if you still have a European Dragon's Lair
or Space Ace machine with a working laserdisc player, you most probably need a replacement
disc in order to have a good video display. The only available solution is to
use the discs reprinted in the early 90s by Software Corner, which are PAL copies of
the original Philips discs. But in order to not allow the original arcade discs to be
used with the Software Corner LDG home system, they added a frame offset so that the
arcade discs would not be usable in the home system and viceversa. So here comes this hack.
You need a true Software Corner reprinted disc, not one of the early Software
Corner discs which are just original arcade Philips discs with a changed hub

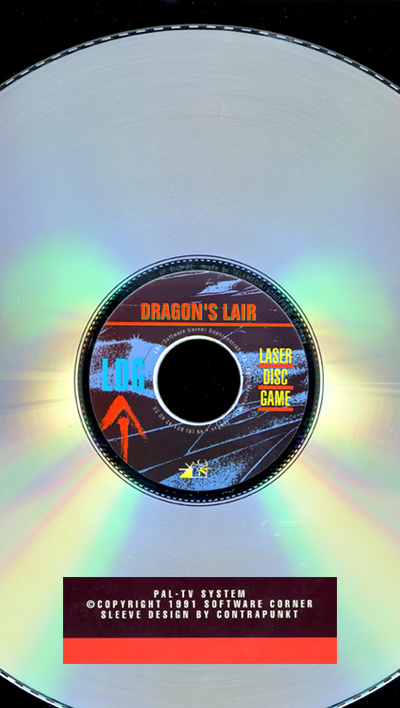

label. Reprinted discs look like this :

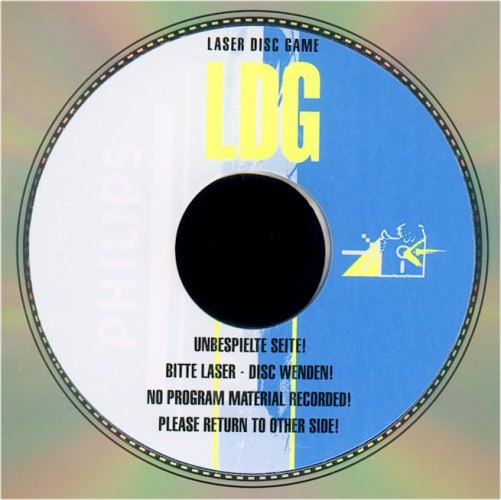

While early Software Corner discs look like this :
So please be careful, because these early discs are just 1983 arcade discs with changed hub label, and most if not all of them will suffer from laser rot.
Note about Space Ace : Software Corner Space Ace laserdiscs are not compatible with the original arcade laserdisc player. In order to add more compatibility issues, Software Corner not only applied a frame offset, but they changed the audio track from analog to digital only. The original Philips 22VP932 laserdisc player used in arcade machines is not capable of playing digital audio. So, to use a Software Corner laserdisc in a Space Ace European machine you must also replace the player. Consider using a LaserCon LDP Converter or doing the EuroDL PC conversion.
PARTS NEEDED
Modified ROM image (see download section), one (or more) blank 2764 eprom.
THEORY OF OPERATION
The reprinted Software Corner discs differ from the original Philips ones by an offset of 78 frames. For Dragon's Lair discs, basically you need to subtract 78 to the frame value in each frame search perfomed by the arcade machine. Well, by disassembling the ROMs, Jeff was able to understand that every frame search in the game is calculated on a 00000 base offset. This offset is stored in U45 ROM at a certain location. Jeff changed it to 99922 (78 frames less), and now the game works perfectly using a reprinted Software Corner disc. The same modification has been done for the three known European version of the game (so far) : Atari Rev.D1, Atari Rev.D2 and Sidam. Shaun did the same for Space Ace. This time the offset is positive, so he changed the base offset to 00078 in Space Ace Euro U45 ROM. The hacked ROM images are enclosed in the zip archive in the download section below. Shaun also fixed the CRC inside the U45 ROMs in order to have them all pass the CRC test performed at boot by the game program.
You can view Jeff's work in the disassembled and commented code for the Italian Dragon's Lair version; just open the the .asm file contained in the zip archive in the download section.
CONSTRUCTION
Simply burn one of the included U45 ROM images into a 2764 EPROM, and plug it into U45 located in the right center of the European Dragon's Lair or Space Ace board.
DOWNLOAD
Documentation is included in the download in the form of a readme text file.
DOWNLOAD EuroDLSASCHack.zip NOW! (59k)
DISCLAIMER
The above is believed to be correct, and works fine for the author. No one is forcing you to do this. If you break your game, it's your fault!
CREDITS
Many thanks to Jeff Kulczycki and Shaun Wood for spending their time and ability to develop this hack ! You rule !
