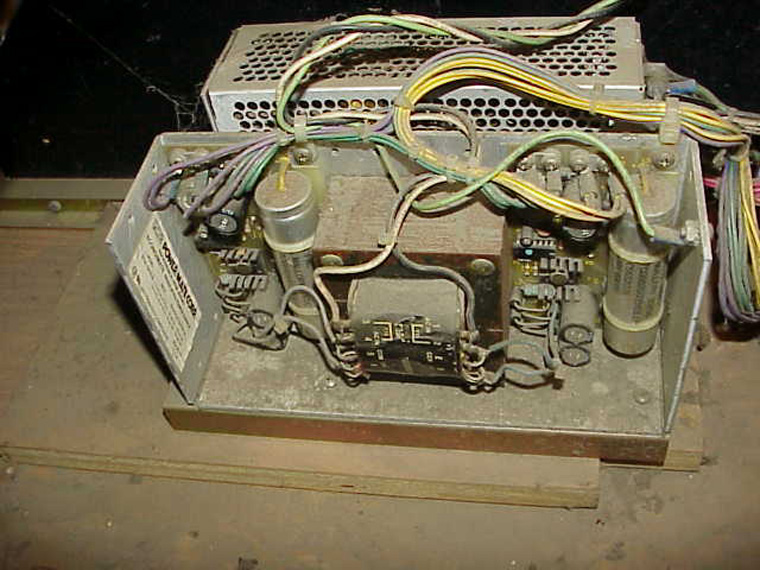

Power Supply

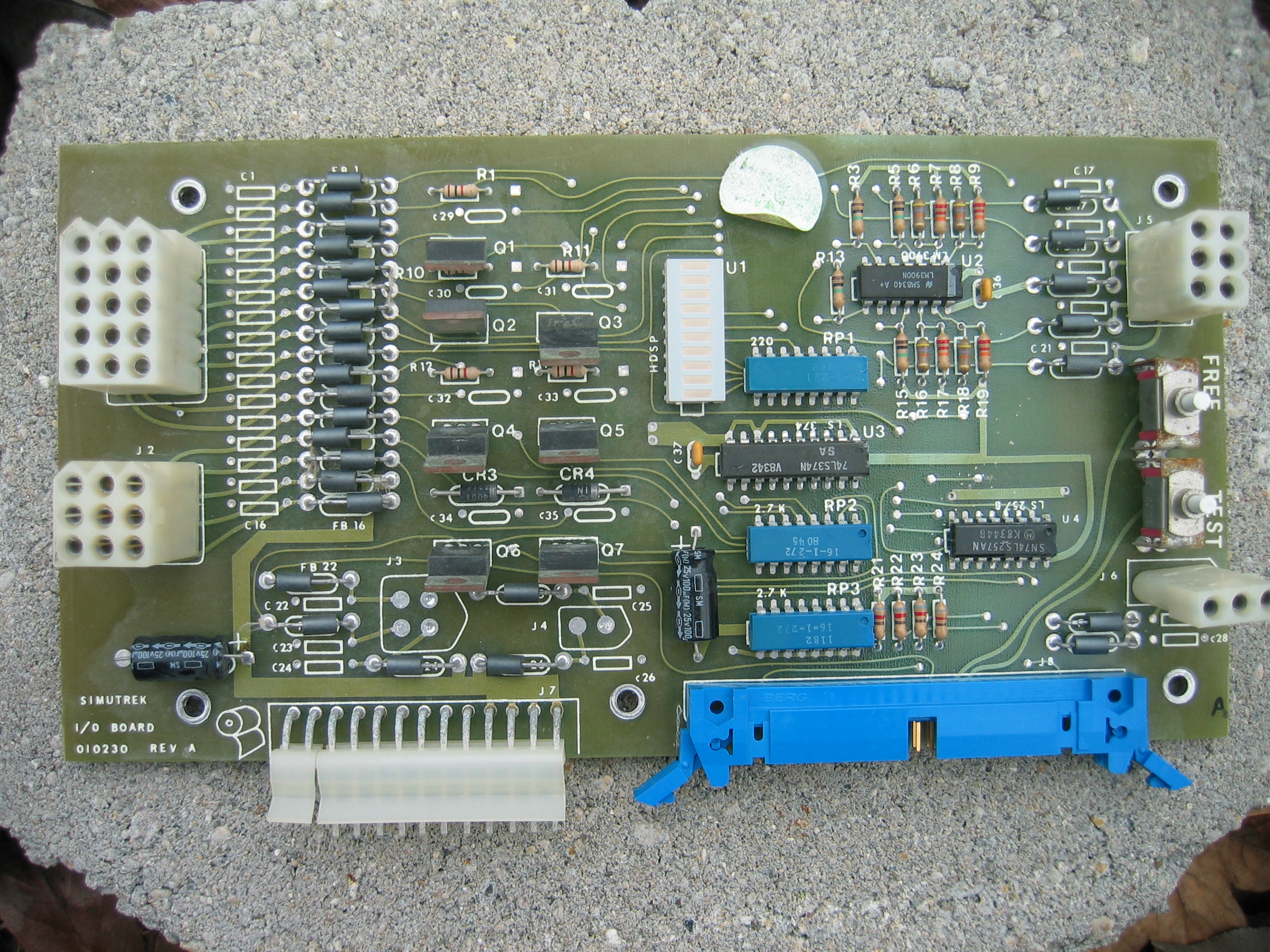

I/O board
(8-1/2" x 4-1/2")
(1)

Audio amp
(?" x ?")
(2)

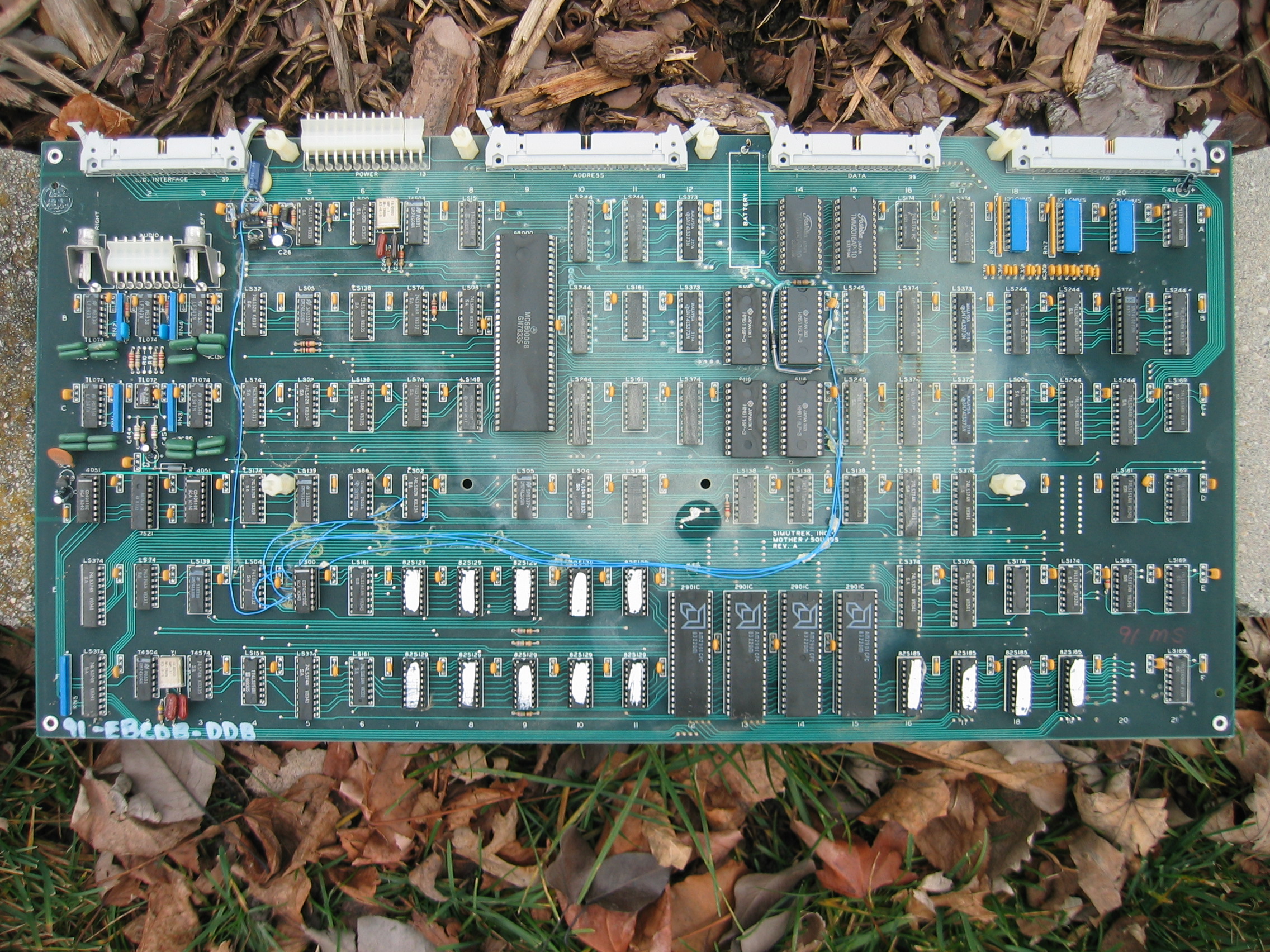

Mother / Sounds
(19-1/4" x 10")
(3)

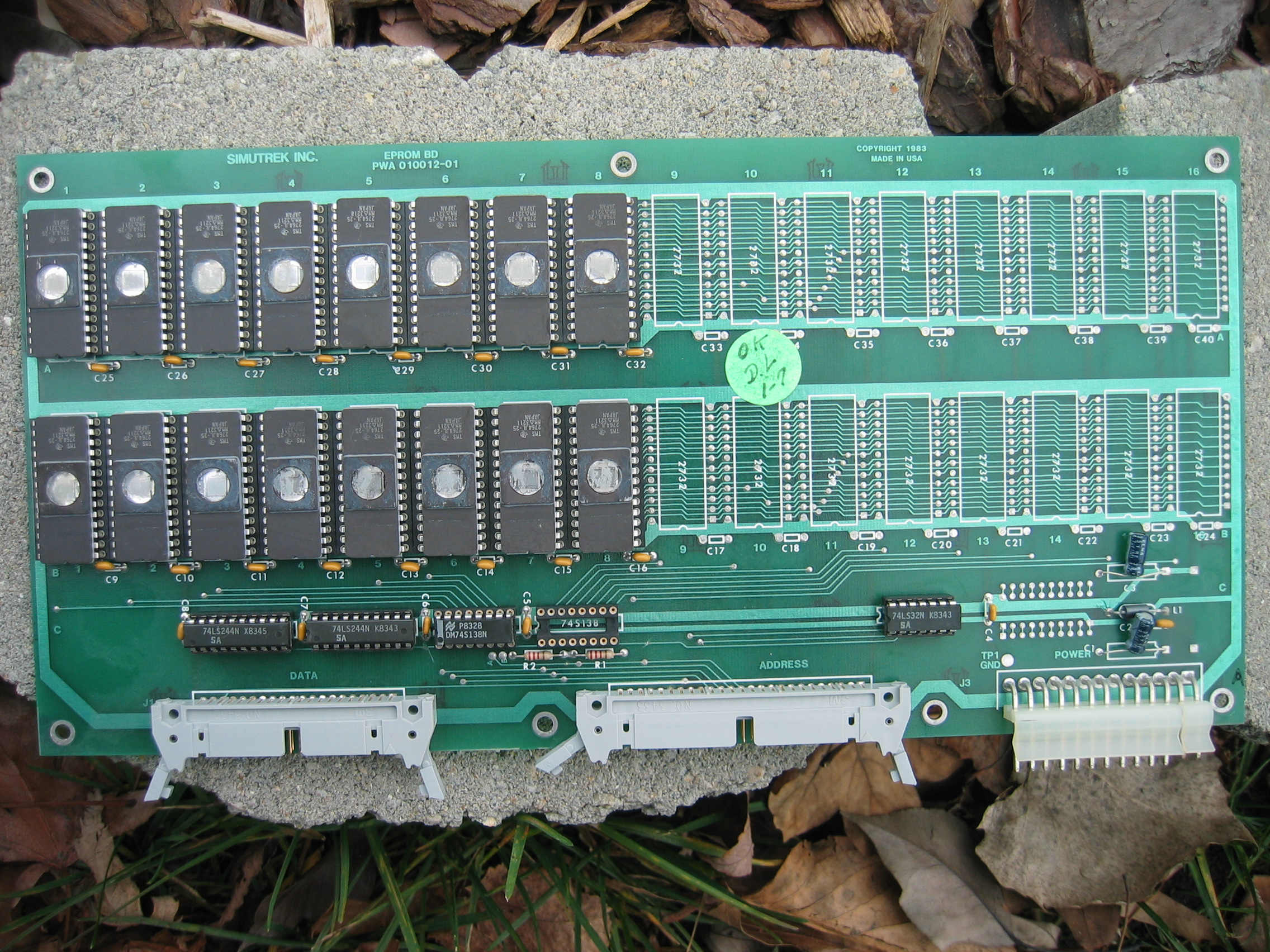

Eprom board
(12-1/4" x 6")
(4)

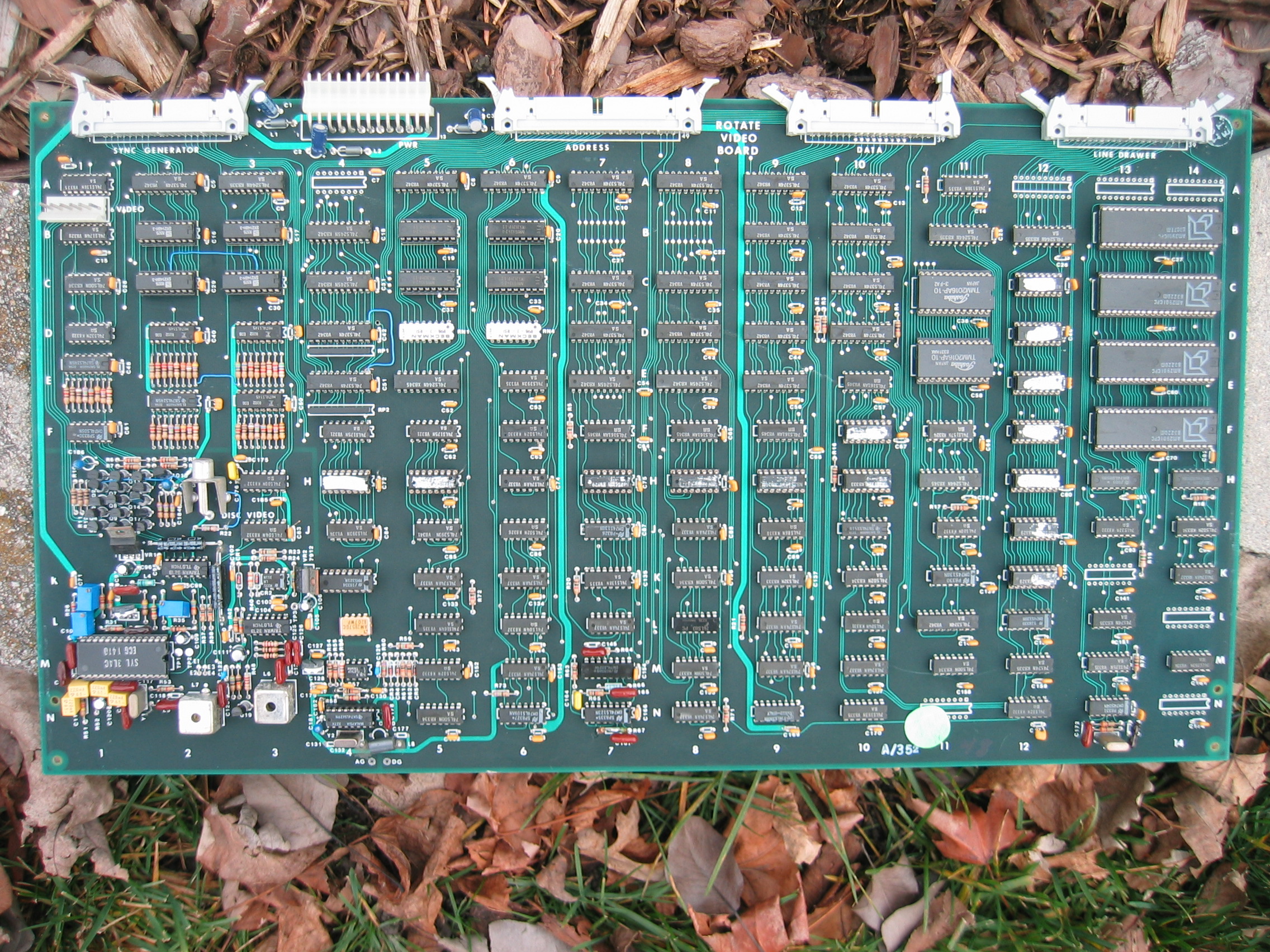

Rotate video PCB
(20" x 11")
(5)

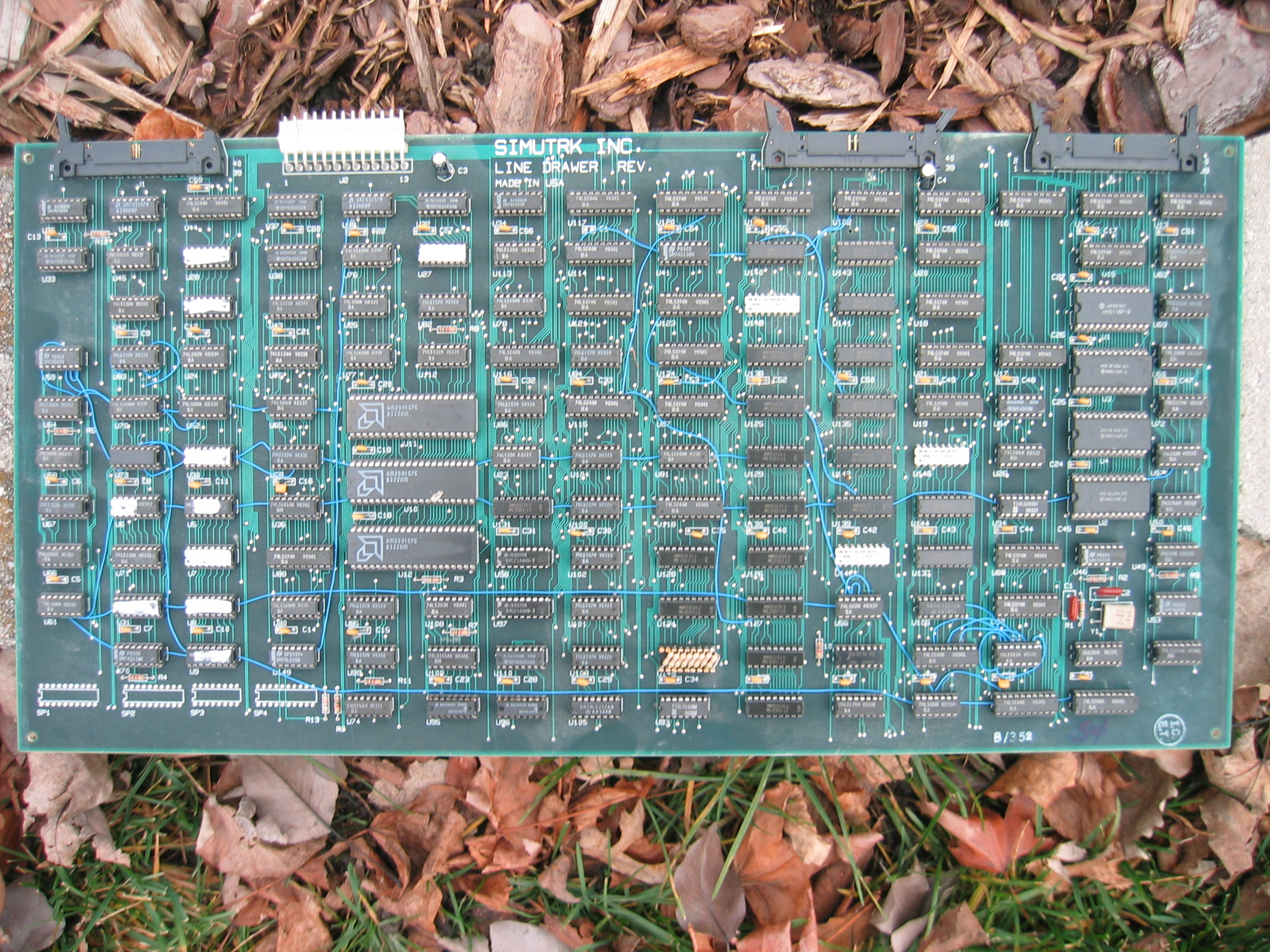

Line Drawer PCB
(20" x 10")
(6)

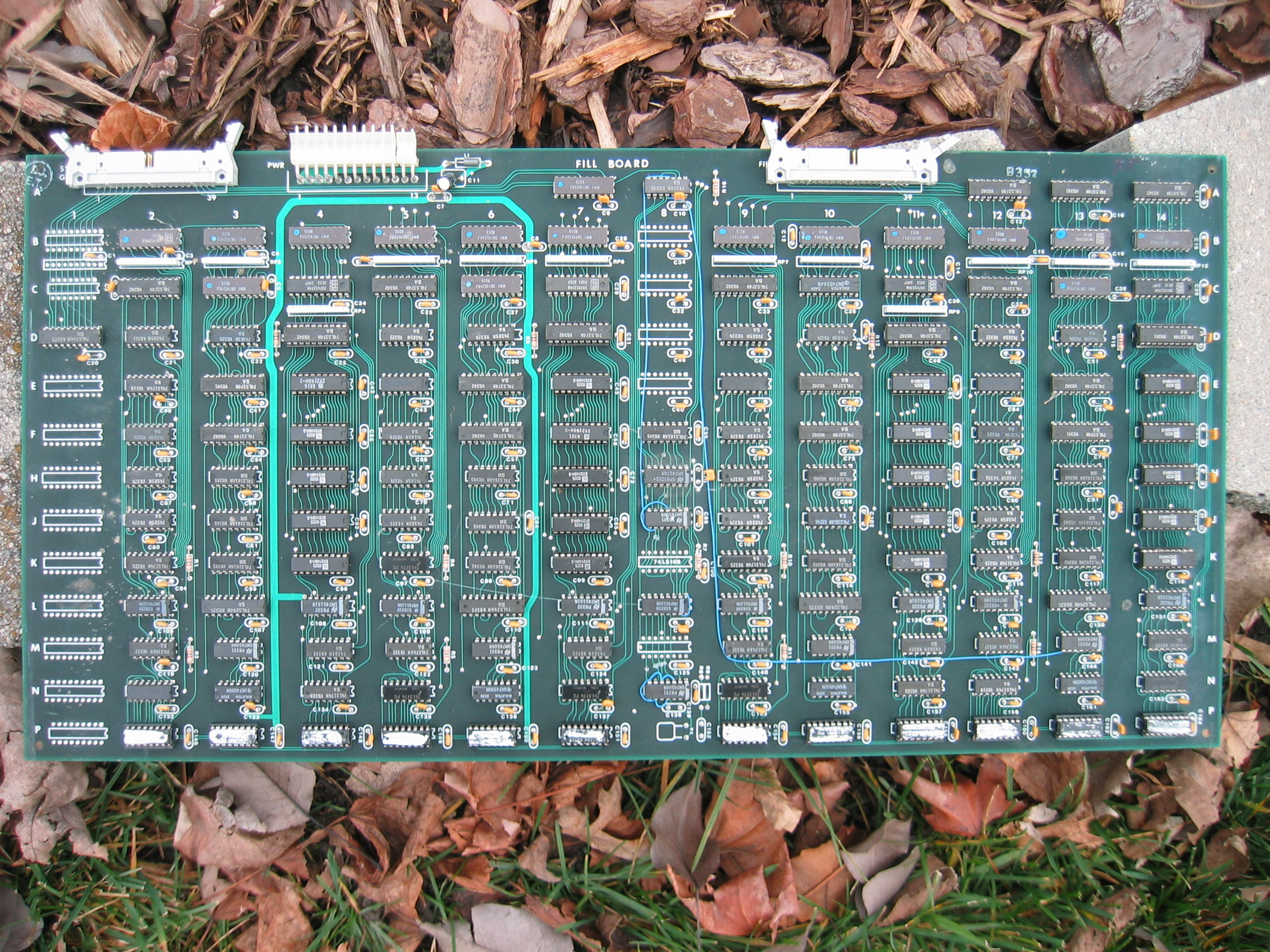

Fill PCB
(20-1/2" x 9-7/8")
(7)

Instructions
sheet
(8-1/2" x 14")
(8)

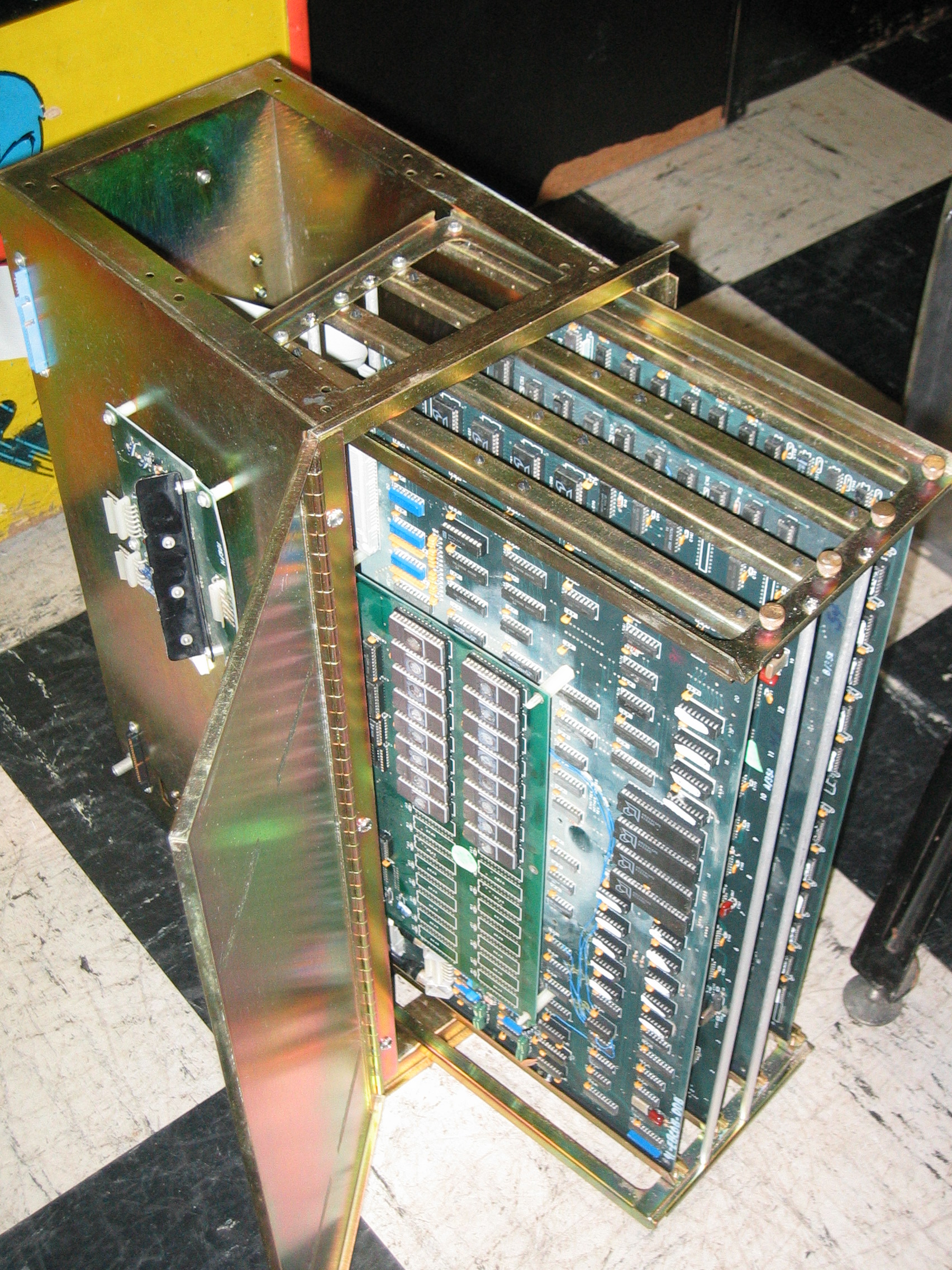

Full cage
(front left view)

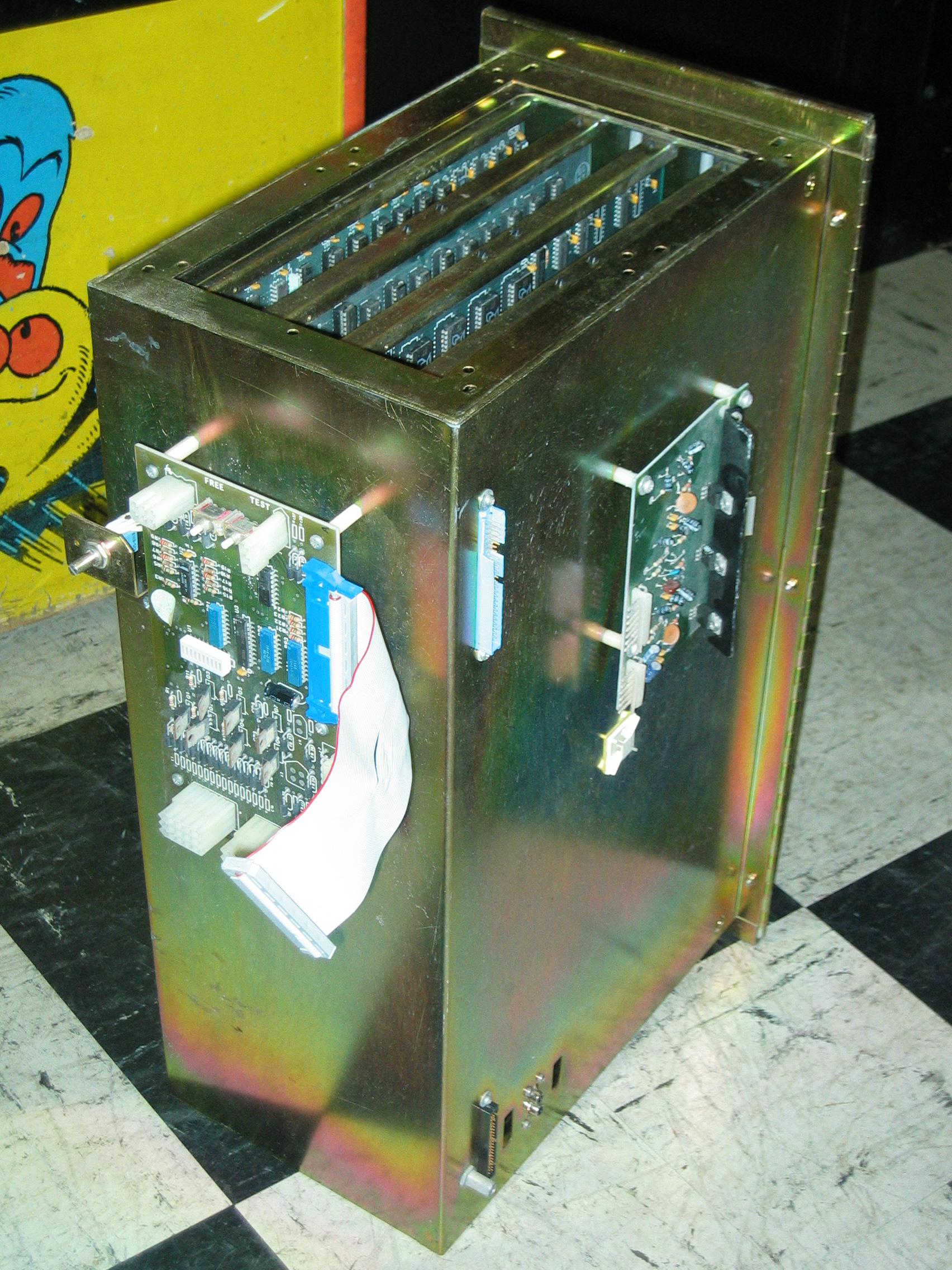

Full cage
(back left view)

Operation and service manual


(1) Mounted on the back outside of the cage.
(2)
Mounted on the left outside of the cage.
(3) This is the first of four boards (from the left) in the slots inside the cage. The battery is located on this board, just to the right of the middle at the top, you can see the board labeled battery there.
(4) This board is mounted on the top of the Mother/Sounds board as a satellite/daughter board. So technically this is the farthest board on the left inside the cage. However, it does not have any rail slots of its own in the cage.
(5) This is the second of four boards (from the left) in the slots inside the cage.
(6) This is the third of four boards (from the left) in the slots inside the cage.
(7) This is the fourth (and last) of four boards (from the left) in the slots inside the cage.

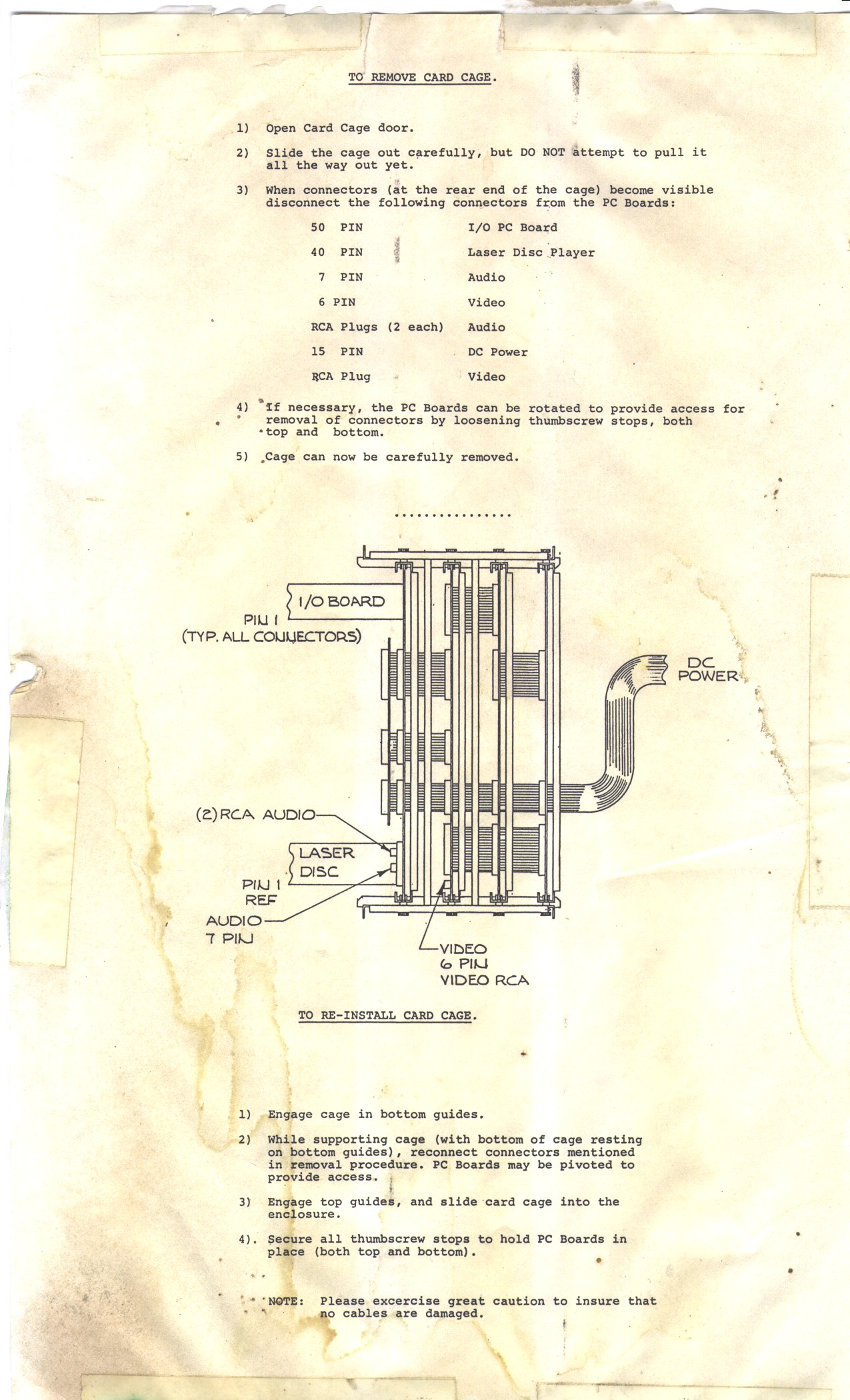

(8) This is a sheet that is taped on the inside of the PCB cage door (if you look closely at the cage door in the picture, you can still see tape marks). There is usually another sheet taped to the outside of the front door, but at present we have no pictures of it.

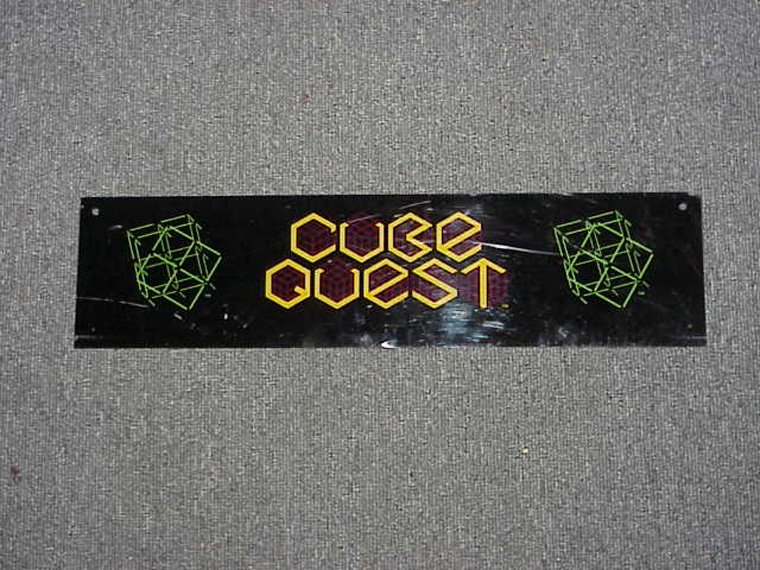

Marquee

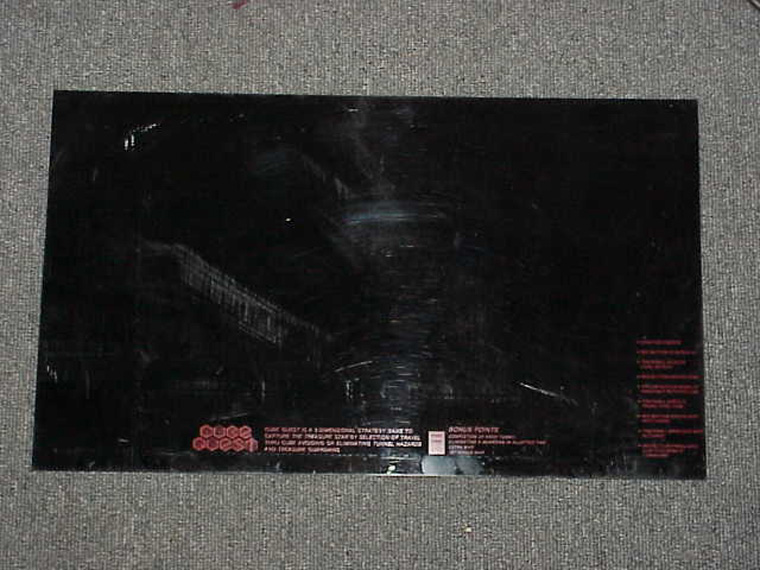

Monitor Bezel

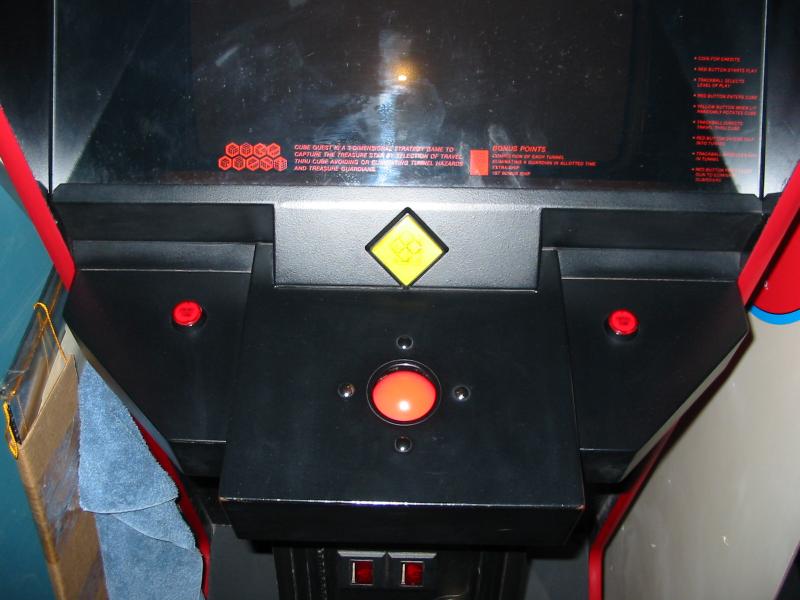

Control panel

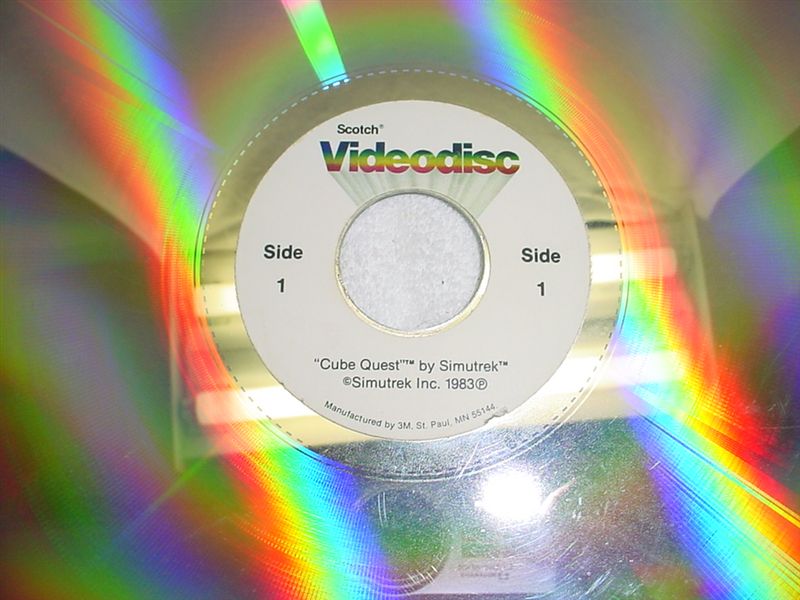

Laserdisc
(single sided, plastic)
(side 1)

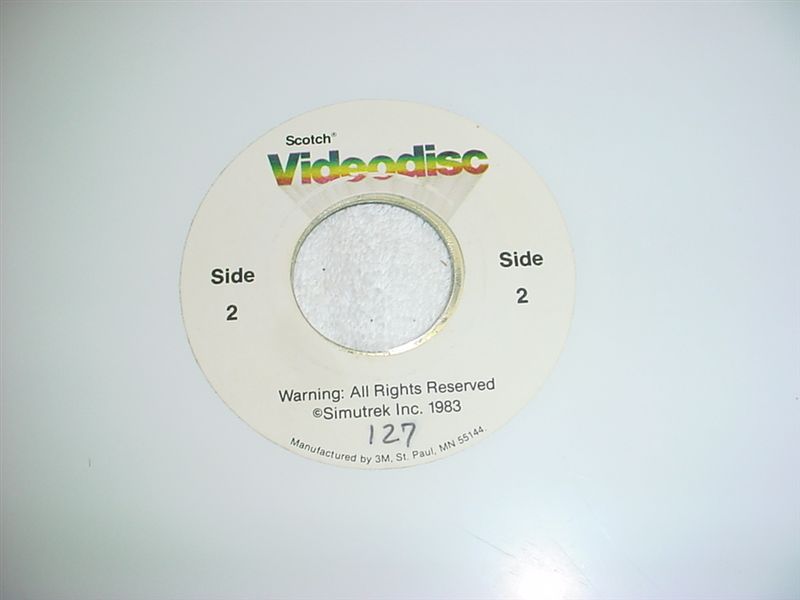

Laserdisc
(single sided, plastic)
(side 2)

Magnavox VC8010
(21" x 15-3/4" 29.8 lbs)

Manufacturer:
Simutrek (USA, 1983)
