Choose a manufacturer from the drop-down list to get manuals, tech info, and more on compatible laserdisc players.

Contributors: Mark Alexander, Tony Dailey, Igorstellar, Jeff Kinder, Dave "MAMEBase", Matteo Marioni, Matt Ownby, Ruben Panossian, Shaun Wood.

SONY LASERDISC PLAYERS

SONY LDP-1000A - This is an NTSC laserdisc player that is used in Bega's Battle and Cobra Command.  It is not compatible with the newer "LDP" series players such as the LDP-1450, LDP-1550, etc.  See the Programming Manual for a detailed look at the communication of this laserdisc player.

Sony LDP-1000A - Operating Instructions (.pdf) 31 pages (1.4m)
Sony LDP-1000A - Programming Manual (.pdf) 74 pages (2.1m)
Sony LDP-1000A - Interface Manual (.pdf) 19 pages (0.3m)


SONY LDP-1450 - This is an NTSC laserdisc player that is used in COPS, Crime Patrol, Crime Patrol 2, Dragon's Lair II, Fast Draw, Gallagher's Gallery, Last Bounty Hunter, Mad Dog McCree, Mad Dog II, Space Ace 91, Space Pirates, Time Traveler, and Who Shot Johnny Rock. This player can also be used in the US version of Dragon's Lair and Space Ace by means of the Hi-Tech conversion card.

The LD player must be set to 9600 baud rate for proper communication with the PCB.  The dip switch settings for the Sony LDP-1450 are:  1-down, 2-down, 3-down, 4-up.  There is also a bank of six switches, these switches must all be set in the down position.  For info on the Command Set, check the Sony Command Set page.

Sony LDP-1450 Manual (.pdf) 19 pages (928K)
Sony LDP-1450 Service Manual (.pdf) (part 1) 50 pages (13.2m)
Sony LDP-1450 Service Manual (.pdf) (part 2) 19 pages (23.0m)

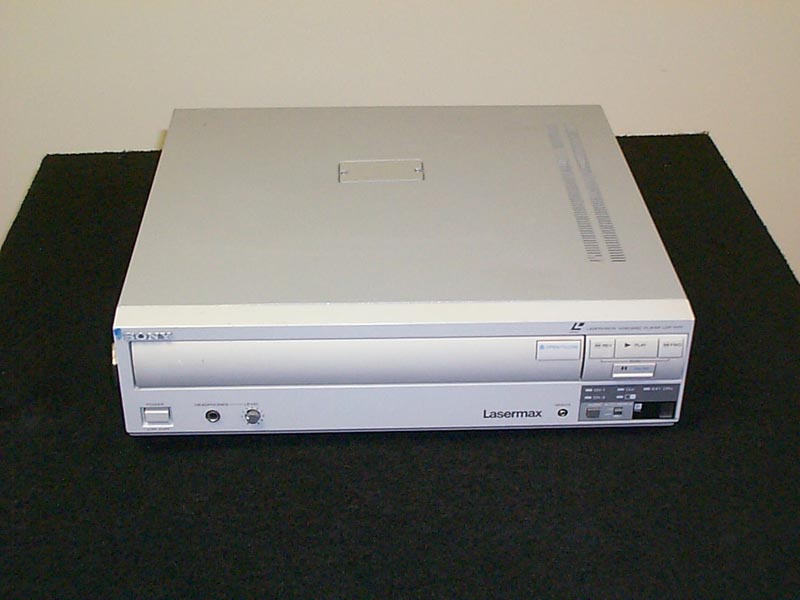

SONY LDP-1500P - This is a PAL laserdisc player that was not used in any laserdisc games from the factory.  Using the LaserAce conversion card, this player can be used in Euro / Atari Dragon's Lair and the Euro / Atari Space Ace.

Sorry, no manual available.


SONY LDP-1550 - This is an NTSC laserdisc player that was not used in any laserdisc games from the factory.  This player can be used as a direct replacement for any of the games that are listed in the LDP-1450 section, except Dragon's Lair II.  (if you want to use this player in Dragon's Lair II, check here for more info.)  Using the LaserAce conversion card, this player can be used in many other laserdisc games. This player can also be used in the US version of Dragon's Lair and Space Ace by means of the Hi-Tech conversion card.

The LD player must be set to 9600 baud rate for proper communication with the PCB.  The dip switch settings for the Sony LDP-1550 are:  1-down, 2-down, 3-down, 4-up.  For info on the Command Set, check the Sony Command Set page.

Sorry, no manual available.


SONY LDP-1550P - This is a PAL laserdisc player that was not used in any laserdisc games from the factory.  Using the LaserAce conversion card, this player can be used in Euro / Atari Dragon's Lair and the Euro / Atari Space Ace.

Sony LDP-1550P Service Manual (.pdf) 86 pages (32m)

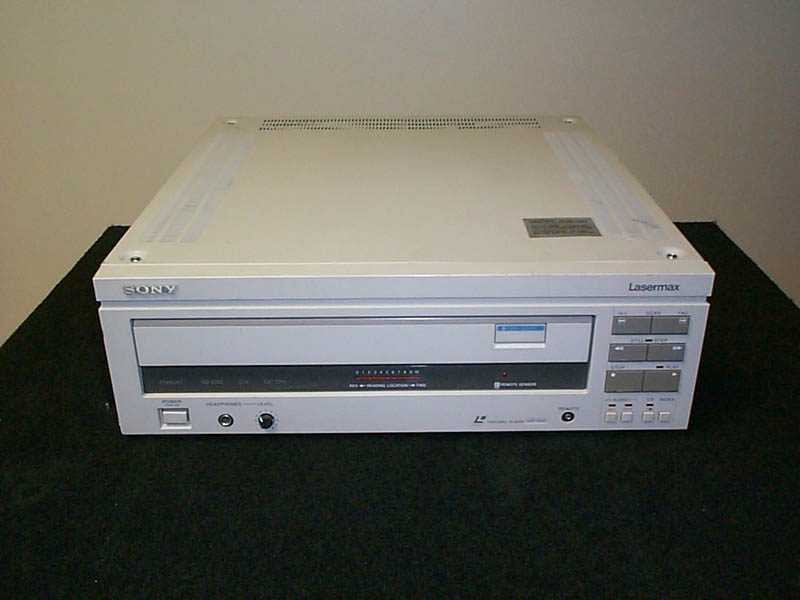

SONY LDP-2000 - This is an NTSC laserdisc player that was not used in any laserdisc games from the factory.  This player can be used as a direct replacement for any of the games that are listed in the LDP-1450 section, except Dragon's Lair II.  (if you want to use this player in a Dragon's Lair II, check here.)  Using the LaserAce conversion card, this player can be used in many other laserdisc games. This player can also be used in the US version of Dragon's Lair and Space Ace by means of the Hi-Tech conversion card.

The LD player must be set to 9600 baud rate for proper communication with the PCB.  The dip switch settings for the Sony LDP-2000 are:  1-up, 2-up, 3-up, 4-down.  For info on the Command Set, check the Sony Command Set page.

Sony LDP-2000 Manual (.pdf) 23 pages (3.5M)


SONY LDP-2000P - This is a PAL laserdisc player that was not used in any laserdisc games from the factory.  Using the LaserAce conversion card, this player can be used in Euro / Atari Dragon's Lair and the Euro / Atari Space Ace.

The LD player must be set to 9600 baud rate for proper communication with the PCB.  The dip switch settings for the Sony LDP-2000 are:  1-up, 2-up, 3-up, 4-down.  For info on the Command Set, check the Sony Command Set page.

Sorry, no manual available.

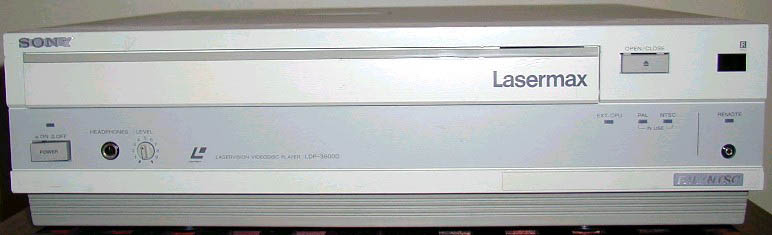

SONY LDP-3600D - This is a combination PAL / NTSC laserdisc player that was not used in any laserdisc games from the factory.  It is compatible with many laserdisc games such as COPS, Crime Patrol, Crime Patrol 2, Dragon's Lair II, Fast Draw, Gallagher's Gallery, Last Bounty Hunter, Mad Dog McCree, Mad Dog II, Space Ace 91, Space Pirates, Time Traveler, and Who Shot Johnny Rock.  Using the LaserAce conversion card, this player can be used in many other laserdisc games. This player can also be used in the US version of Dragon's Lair and Space Ace by means of the Hi-Tech conversion card.

Sorry, no manual available.

Do you have any laserdisc player information that isn't shown here?  Be a contributor!
